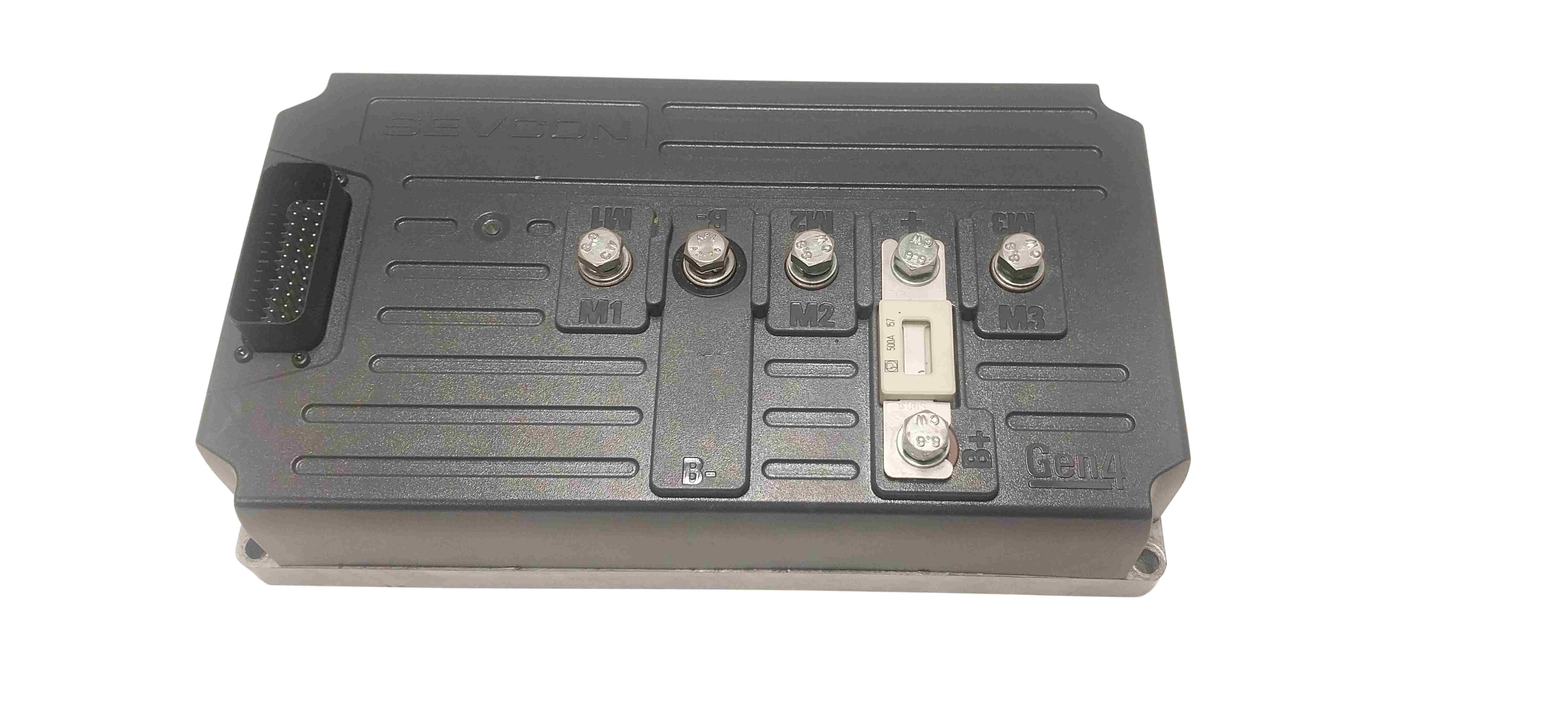

This is premium PMSM, PMAC, IPM or AC Induction motor controller. Good for both commercial, racing and other uses.

Great for motors such as Motenergy ME1115, ME1507, ME1616 and more.

Can program Torque/RPM curve and HP(wattage)/RPM curve!

Programmable via Borgwarner DVT configuration software. Sold separately. Sold in 3 year subscriptions. We are willing to sell IXAAT USB-CANOpen programming dongle ($550.00)

Willing to sell budget Windows 7 and Windows 10 laptop or Panasonic Toughbook (CF-30, CF-31) with Borgwarner DVT configuration software and motor parameters files included.

For end user programming there is a major up front cost but so we offer pre-programming of inverter for a specific motor. Contrary to popular belief there is no self-characterization function with this controller. Requires expert to program it.

Recommend buying motors from actual Sevcon dealers (such as Thunderstruck Motors) so you can obtain motor parameters. Sevcon unit is not safe to use without motor parameters.

Requires non-economized contactor to work correctly. Willing to sell proper EV200 class contactors for it.

Willing to sell pre-configured wiring harness to user specifications.

‍

‍

Can run a variety of different motor encoders including

Sine/Cosine, Quadrature AB (5 to 24v open collector or 10v constant current, UVW Communtation 5v/10v

Please check manual. Will not work with hall effect encoder!!

‍

Traction Battery Voltage Range: 39.1 V to 120 V (Lithium Ion 28S max, 32S LiFePO4 max, 28S LiPo Max)

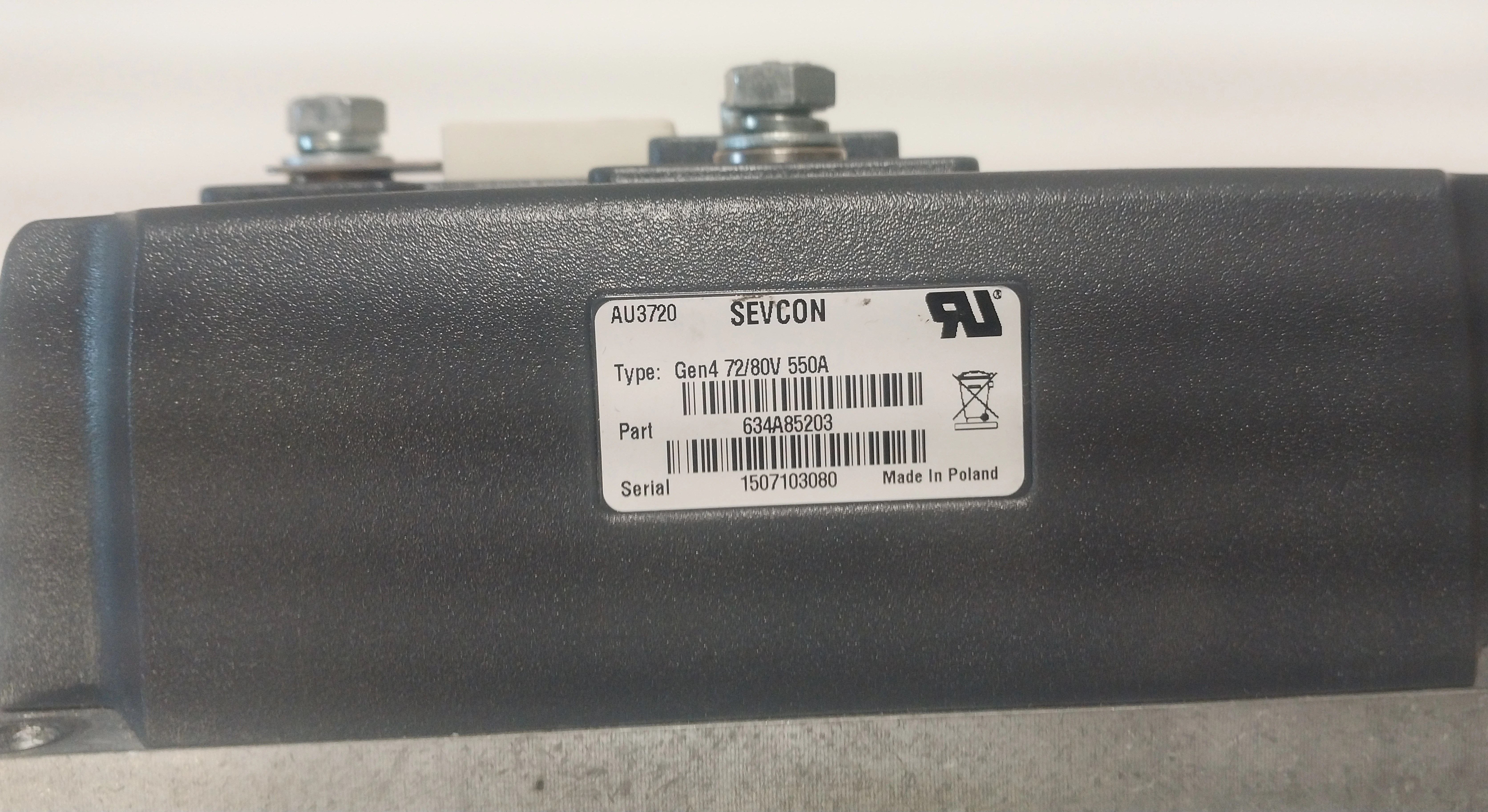

Nominal Voltage 72V/80V

Continuous Current: 220Arms

Peak Current: 550Arms (Amps RMS) (not to be confused with peak phase amps which is a higher value))

Boost 10S Current: 660Arms

Aluminum Heatsink

500A bus current fuse standard

CAN Protocol: CANOpen (Programmible TXPDO's)

Weight: 9.2 lbs

Dimensions Inches: Length 7.4" Width 6.5" Height 2.8"

Dimmension MM: Length 187mm Width 165mm Height 71mm

‍

Please contact Nathan Metric (979-665-5597) for option add ons, programming, etc. If you buy just the controller they come pre-configured for Sine/Cosine sensor motor ME1115 for 24S lithium ion/lipo battery and basic controls.

‍
