For sale is Microcontroller device for manual control over canbus Elcon charger.

Comes pre-loaded with code to work Elcon canbus charger and Lonestar Python serial programmer program.

‍

VIN input range 9-28v

USB-Type C Voltage 5v

Dimensions 70x66x30mm

‍

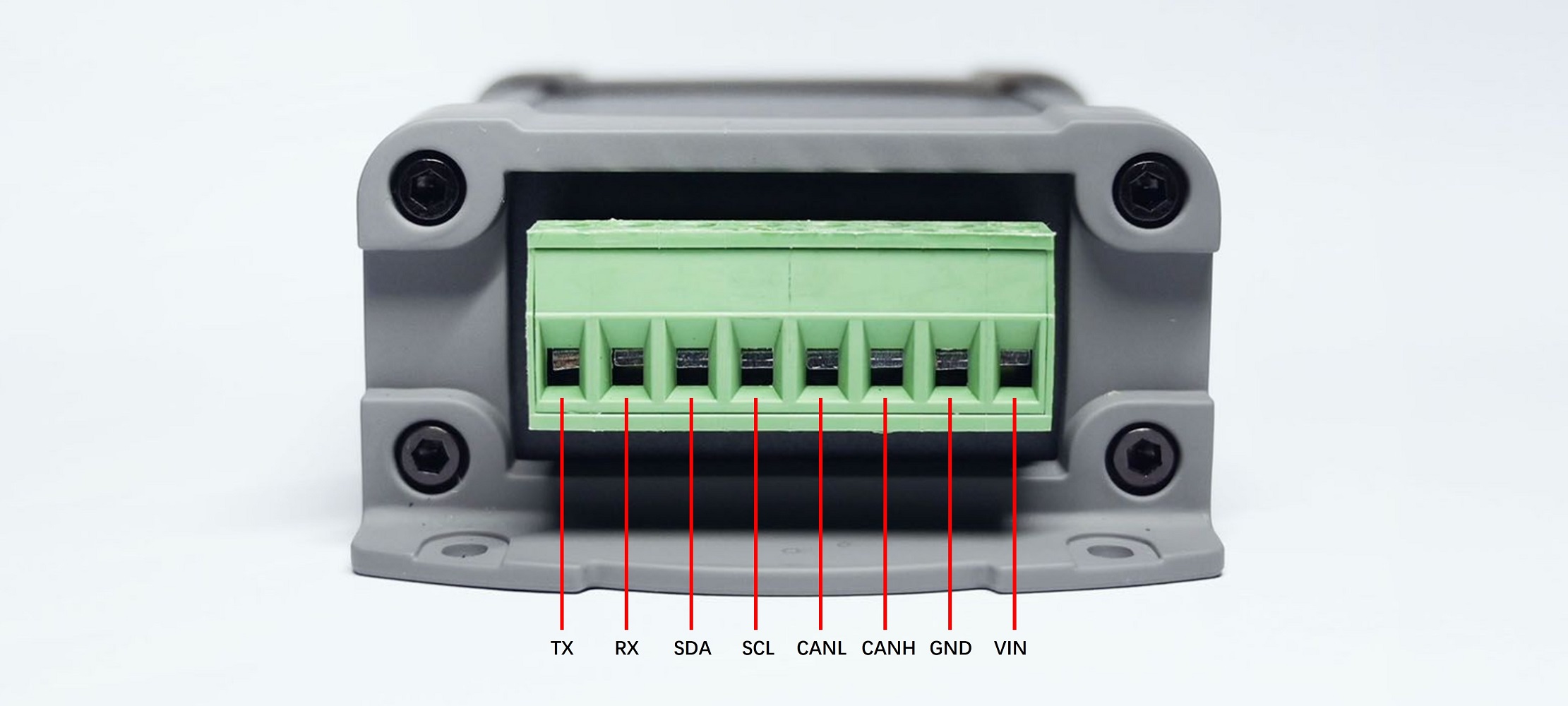

Externally accessible RX, TX, SDA, SCL, CANH, CAN L, GND and VIN inputs.

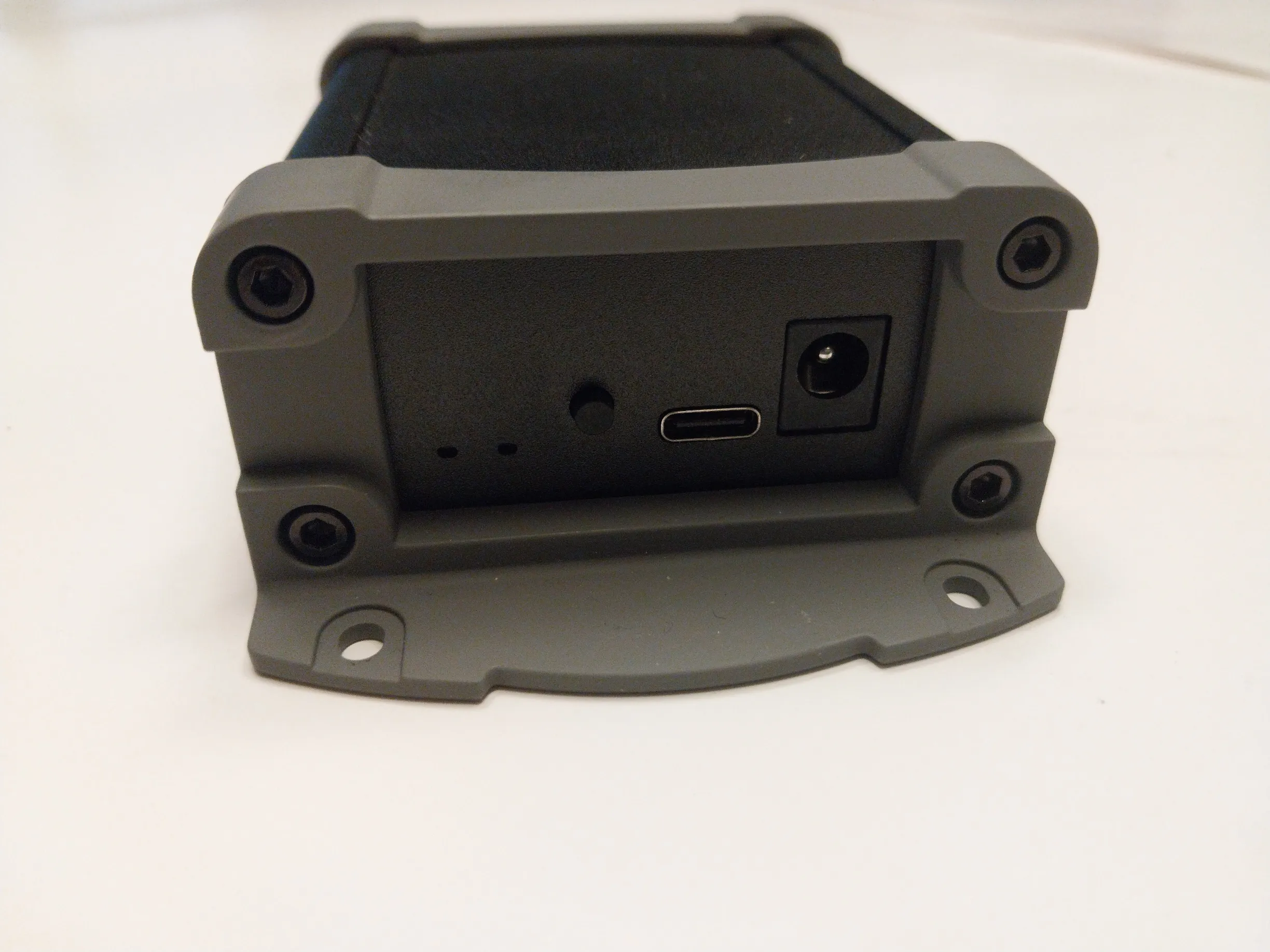

Can run off 9-28v aux power or USB-Type C port.

‍

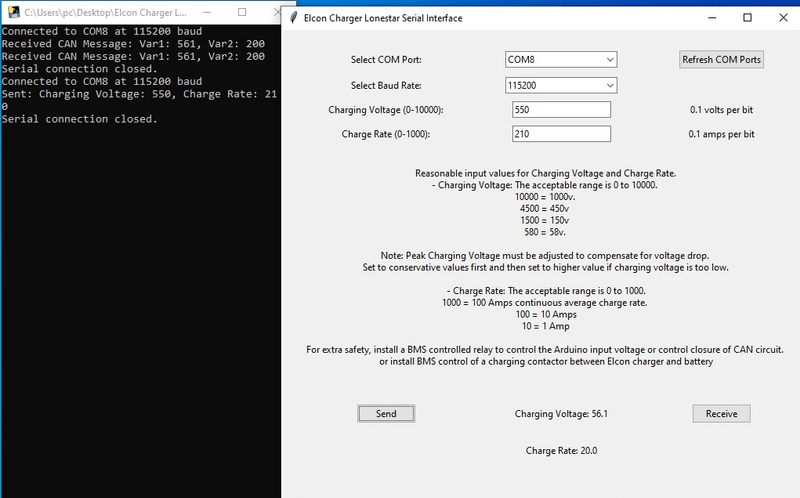

Use this link to access programmer software. EXE file. Tested with Windows. Follow app notes.

https://drive.google.com/drive/u/2/folders/1INaMd-IRZImAYGviVjNkY4rjpz8geems

‍

Then use USB Type C-data cable to connect unit to programmer software.

‍
