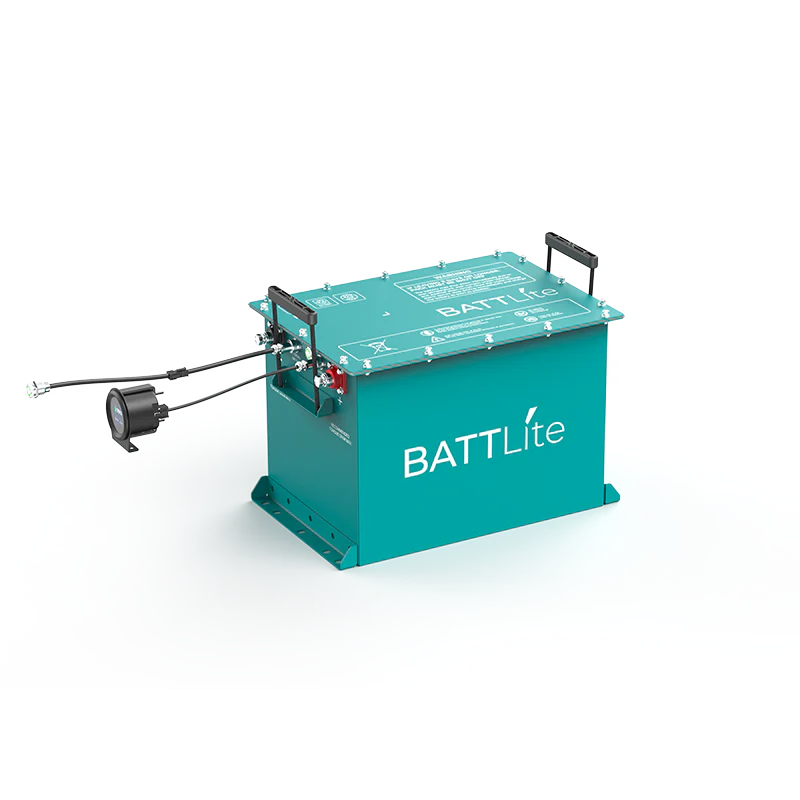

Model: BAT500

Nominal Voltage: 51.2 (3.2v per cell)

Peak Voltage: 58.4 (3.65v per cell)

Cells in Series: 16

Ah Capacity: 100Ah

Kwh Capacity: 5.10kwh

LiFePO4 Prismatic 3C class cells

Cycle Life Estimate: >4000 cycles

Life Span Estimate is 10 years

Continuous Charge / Discharge: 20A / 130A (0.2C charge / 1.3C discharge)

Peak Charge / Discharge: 40A / 130A (0.4C charge / 3C discharge)

BMS Peak Current Rating: 300A

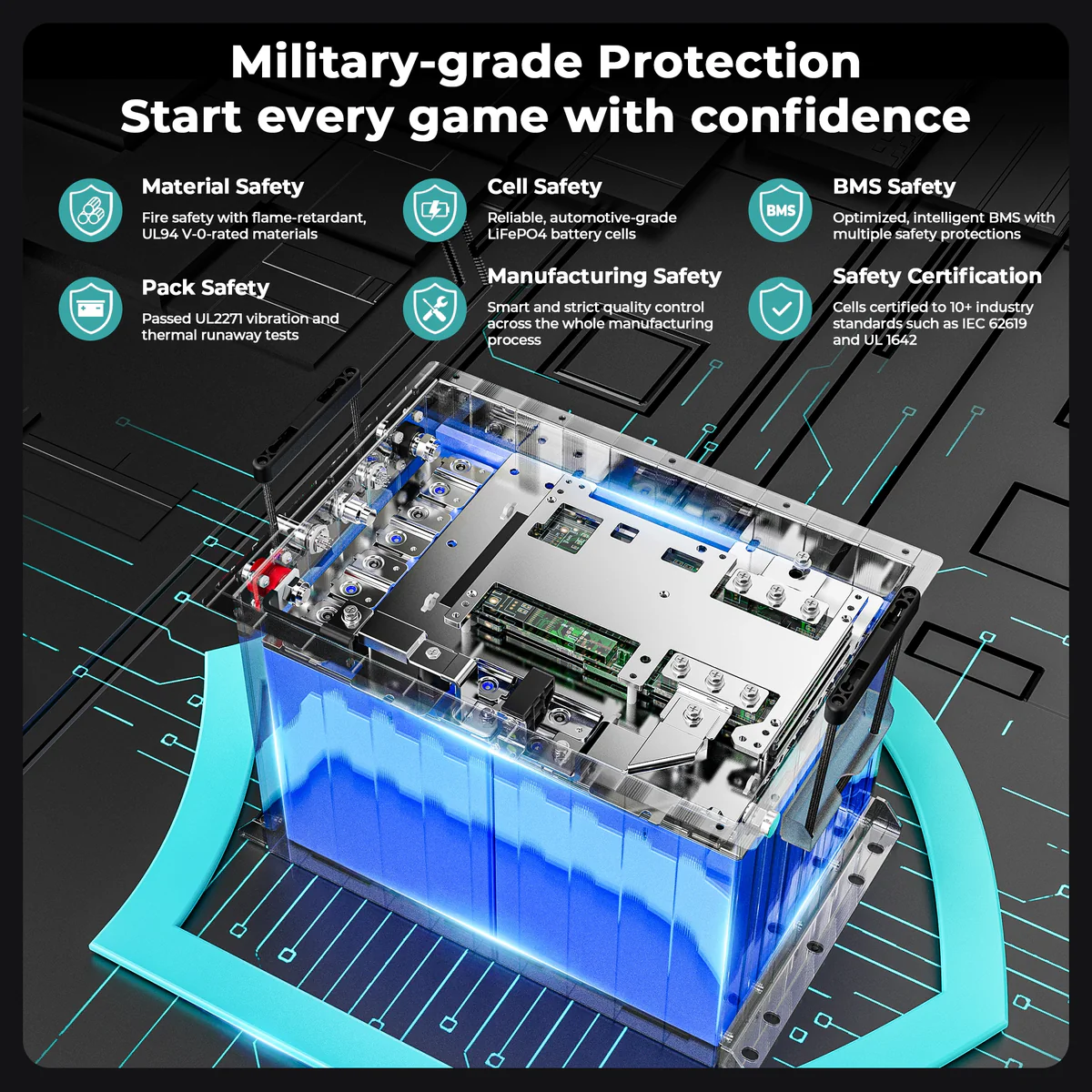

BMS Features: Overcurrent, Temperature Protection, overcharge, short circuit, automatic balancing, leakage protection

Range: 40-50 miles

Working Temperature Range:

Charge 32-131F

Discharge -4F - 131F

Storage Temperature Range:

1 Month: -4F - 131F

1 Year: 32F - 95F

Ingress Rating: IP67

Steel Case

Dimensions Inches: 16.14" L x 10.83" W x 10.63" H

Dimensions MM 410mm L x 275mm W x 270mm H

Weight: 110.23 lbs +- 4.41lbs

‍

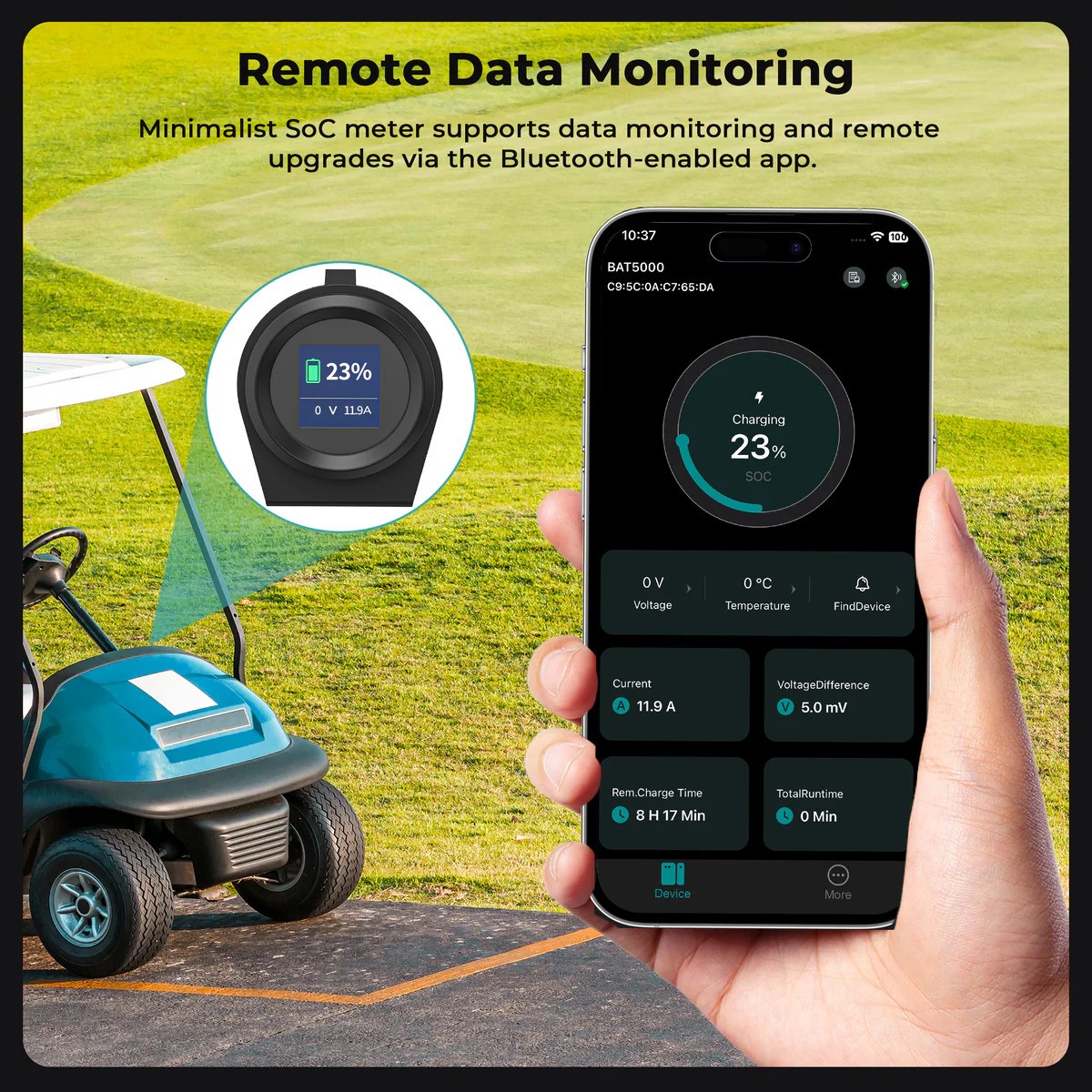

Bluetooth app for 300A BMS

Come with proprietary SOC meter.

Can purchase aftermarket SOC shunt based meter if this fails. Connects via B- and B+ terminals.

‍

8-year warranty

Must be installed by dealer to get warranty protection

Local deals only around Houston Texas area. No freight shipping.

‍
